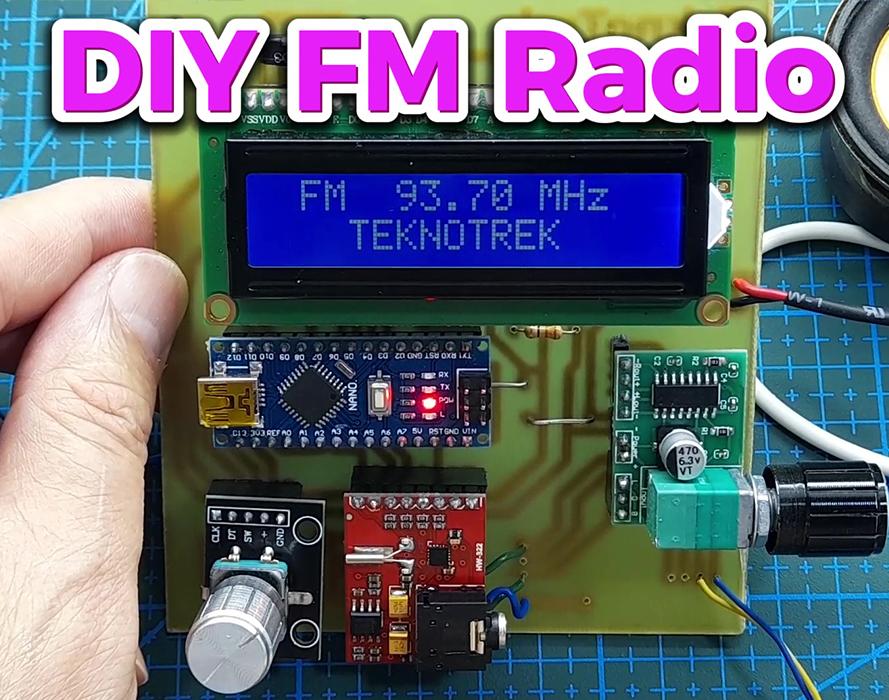

Diy Fm Radio Receiver Using Arduino and Si4703

About: Welcome! As a hobbyist and technology enthusiast with a background in Electrical Engineering, the goal is to make complex electronics projects and DIY (do-it-yourself) activities accessible to everyone.

In this project, we will build a fully functional FM radio receiver using the Arduino Nano and the Si4703 FM tuner module. This easy-to-follow guide is perfect for hobbyists and electronics enthusiasts who want to dive into the world of radio frequency and wireless communication.

The Si4703 module is a highly integrated FM receiver that simplifies the process of tuning and listening to FM stations. Paired with the Arduino Nano, a rotary encoder, and an LCD display, this project will not only provide you with a working radio but also teach you the basics of RF circuits and Arduino programming.

By the end of this tutorial, you'll have a clear understanding of how to set up and program an FM radio receiver, tune into your favorite stations, and adjust the volume with just a few components.

What You'll Learn:

1. How to interface the Si4703 FM receiver module with an Arduino
2. How to use a rotary encoder for frequency tuning
3. Displaying information on a 16x02 LCD screen
4. Building a compact and functional FM radio with a stereo amplifier
5. Let's get started on your journey to building your own custom FM radio receiver!

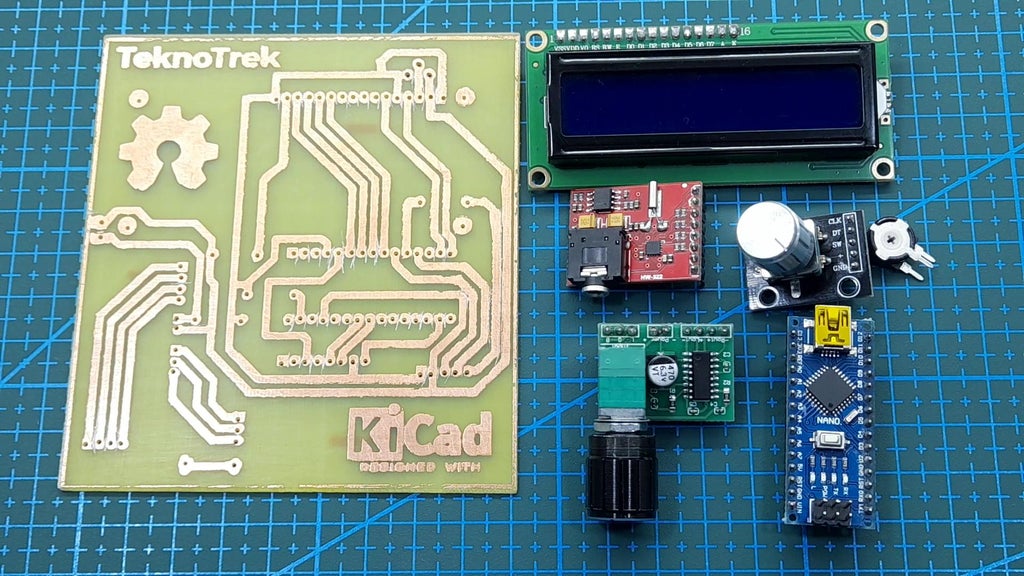

Supplies

1. Arduino Nano (or any compatible Arduino board)
2. Si4703 FM Tuner Module
3. PAM8403 Stereo Amplifier Module (for enhanced audio output)
4. 16x02 LCD Display (to show the frequency and other information)
5. Rotary Encoder (for tuning the frequency)
6. Speaker or Headphones (for audio output)
7. Push Button (for power or station selection)
8. 10k Potentiometer (to adjust the display contrast)
9. Breadboard and Jumper Wires (for easy connections)
10. 5V Power Supply (or USB power for the Arduino)
11. Soldering Tools (if needed for permanent connections)

Optional:

1. Enclosure or Casing (to house your project neatly)
2. Antenna (for better FM signal reception)

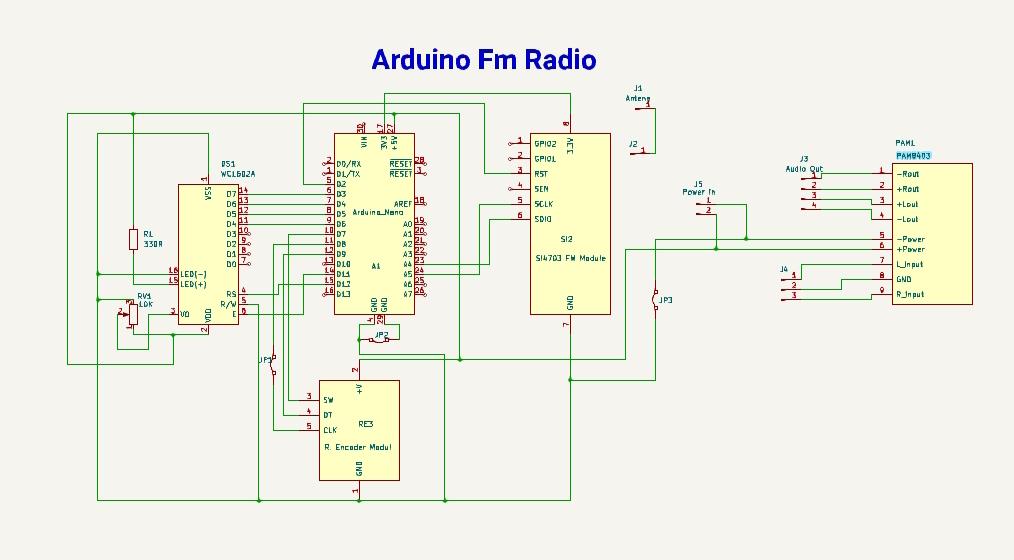

Step 1: Schematic

The schematic for this FM radio receiver project is straightforward and easy to follow. It consists of the following key components:

Arduino Nano: The central microcontroller used to interface with the Si4703 FM module and control other components such as the rotary encoder and the LCD display.

Si4703 FM Module: This FM tuner module is connected to the Arduino via the I2C (SDA and SCL) lines. It receives the FM signals and sends the audio data to the amplifier module.

PAM8403 Stereo Amplifier Module: The amplifier boosts the audio signal from the Si4703 and drives the speaker or headphones. It is powered by the same 5V supply as the Arduino.

Rotary Encoder: The rotary encoder is connected to the Arduino to allow for tuning of the FM frequency. Turning the encoder changes the frequency and is displayed on the LCD screen.

16x02 LCD Display: The LCD screen shows the current FM frequency and other information. It is connected to the Arduino using the I2C protocol, sharing the same SDA and SCL lines as the Si4703 module.

Power Supply: The entire circuit is powered by a 5V supply. If a 5V supply is not available, a 7805 voltage regulator can be used to step down from a 12V supply.

In the schematic, connections are clearly shown between components. The I2C lines (SDA and SCL) are shared between the Si4703 and the LCD. The rotary encoder is connected to digital pins on the Arduino for detecting changes in rotation. The amplifier is powered by the same supply as the Arduino and receives audio signals from the Si4703 module.

Make sure all connections are secure, and follow the schematic carefully to ensure correct functionality.

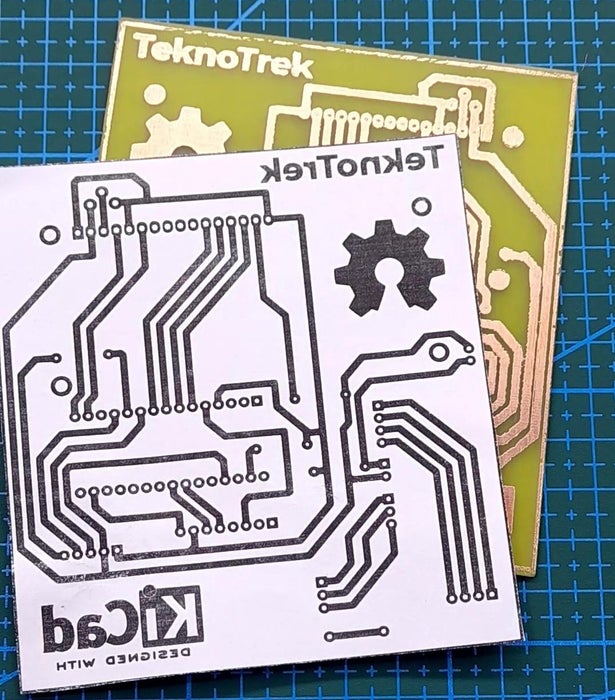

Step 2: Gather All Components and Set Up the Breadboard

Start by gathering all the required components for the project: Arduino Nano, Si4703 FM module, LCD display, rotary encoder, PAM8403 amplifier, and other parts. Once you have everything, set up the breadboard by placing the components and connecting them according to the schematic. Make sure to organize the wiring neatly to avoid confusion during the assembly.

Reference: TeknoTrek
